视频讲解：DQN 玩 2048 实战｜第一期！搭建游戏环境（附 PyGame 可视化源码）_哔哩哔哩_bilibili

代码仓库：GitHub - LitchiCheng/DRL-learning: 深度强化学习

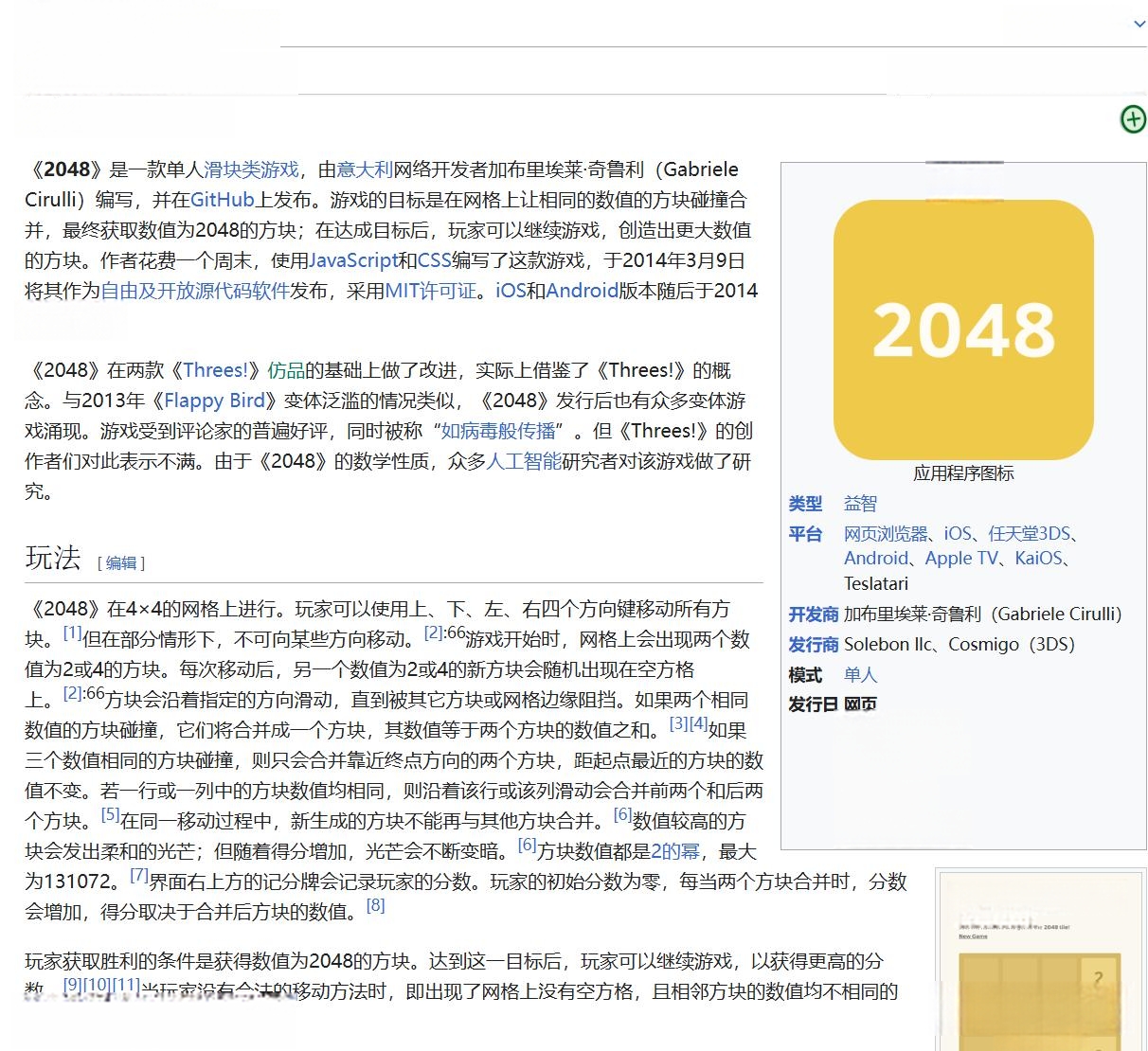

2048游戏介绍，引用维基百科

《2048》在4×4的网格上进行。玩家可以使用上、下、左、右四个方向键移动所有方块。[1]但在部分情形下，不可向某些方向移动。[2]:66游戏开始时，网格上会出现两个数值为2或4的方块。每次移动后，另一个数值为2或4的新方块会随机出现在空方格上。[2]:66方块会沿着指定的方向滑动，直到被其它方块或网格边缘阻挡。如果两个相同数值的方块碰撞，它们将合并成一个方块，其数值等于两个方块的数值之和。[3][4]如果三个数值相同的方块碰撞，则只会合并靠近终点方向的两个方块，距起点最近的方块的数值不变。若一行或一列中的方块数值均相同，则沿着该行或该列滑动会合并前两个和后两个方块。[5]在同一移动过程中，新生成的方块不能再与其他方块合并。[6]数值较高的方块会发出柔和的光芒；但随着得分增加，光芒会不断变暗。[6]方块数值都是2的幂，最大为131072。[7]界面右上方的记分牌会记录玩家的分数。玩家的初始分数为零，每当两个方块合并时，分数会增加，得分取决于合并后方块的数值。[8]

玩家获取胜利的条件是获得数值为2048的方块。达到这一目标后，玩家可以继续游戏，以获得更高的分数。[9][10][11]当玩家没有合法的移动方法时，即出现了网格上没有空方格，且相邻方块的数值均不相同的情况，游戏就直接结束。[6][12]

使用pygame创建一个交互环境，实际作为env使用的时候可以不用pygame，换成matplotlib只做一个简单的显示即可，安装pygame

pip3 install pygame -i https://mirrors.tuna.tsinghua.edu.cn/pypi/web/simple

创建一个Env2048Gui.py

import numpy as np
import random
import pygame

# 2048 游戏环境类
class Game2048:
    def __init__(self):
        self.board = np.zeros((4, 4), dtype=int)
        self.add_random_tile()
        self.add_random_tile()

    def add_random_tile(self):
        empty_cells = np.argwhere(self.board == 0)
        if len(empty_cells) > 0:
            index = random.choice(empty_cells)
            self.board[index[0], index[1]] = 2 if random.random() < 0.9 else 4

    def move_left(self):
        reward = 0
        new_board = np.copy(self.board)
        for row in range(4):
            line = new_board[row]
            non_zero = line[line != 0]
            merged = []
            i = 0
            while i < len(non_zero):
                if i + 1 < len(non_zero) and non_zero[i] == non_zero[i + 1]:
                    merged.append(2 * non_zero[i])
                    reward += 2 * non_zero[i]
                    i += 2
                else:
                    merged.append(non_zero[i])
                    i += 1
            new_board[row] = np.pad(merged, (0, 4 - len(merged)), 'constant')
        if not np.array_equal(new_board, self.board):
            self.board = new_board
            self.add_random_tile()
        return reward

    def move_right(self):
        self.board = np.fliplr(self.board)
        reward = self.move_left()
        self.board = np.fliplr(self.board)
        return reward

    def move_up(self):
        self.board = self.board.T
        reward = self.move_left()
        self.board = self.board.T
        return reward

    def move_down(self):
        self.board = self.board.T
        reward = self.move_right()
        self.board = self.board.T
        return reward

    def step(self, action):
        if action == 0:
            reward = self.move_left()
        elif action == 1:
            reward = self.move_right()
        elif action == 2:
            reward = self.move_up()
        elif action == 3:
            reward = self.move_down()
        done = not np.any(self.board == 0) and all([
            np.all(self.board[:, i] != self.board[:, i + 1]) for i in range(3)
        ]) and all([
            np.all(self.board[i, :] != self.board[i + 1, :]) for i in range(3)
        ])
        state = self.board.flatten()
        return state, reward, done

    def reset(self):
        self.board = np.zeros((4, 4), dtype=int)
        self.add_random_tile()
        self.add_random_tile()
        return self.board.flatten()

# 颜色定义
COLORS = {
    0: (205, 193, 180),
    2: (238, 228, 218),
    4: (237, 224, 200),
    8: (242, 177, 121),
    16: (245, 149, 99),
    32: (246, 124, 95),
    64: (246, 94, 59),
    128: (237, 207, 114),
    256: (237, 204, 97),
    512: (237, 200, 80),
    1024: (237, 197, 63),
    2048: (237, 194, 46)
}

# 绘制游戏板
def draw_board(screen, board, tile_size, margin):
    for i in range(4):
        for j in range(4):
            value = board[i][j]
            color = COLORS.get(value, (0, 0, 0))
            pygame.draw.rect(screen, color,
                             (j * (tile_size + margin) + margin,
                              i * (tile_size + margin) + margin,
                              tile_size, tile_size))
            if value != 0:
                font = pygame.font.Font(None, 36)
                text = font.render(str(value), True, (0, 0, 0))
                text_rect = text.get_rect(center=(
                    j * (tile_size + margin) + margin + tile_size // 2,
                    i * (tile_size + margin) + margin + tile_size // 2
                ))
                screen.blit(text, text_rect)

# 主函数
def main():
    pygame.init()
    tile_size = 100
    margin = 10
    width = height = 4 * (tile_size + margin) + margin
    screen = pygame.display.set_mode((width, height))
    pygame.display.set_caption("2048 Game")

    game = Game2048()
    done = False
    clock = pygame.time.Clock()

    while not done:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                done = True
            elif event.type == pygame.KEYDOWN:
                if event.key == pygame.K_LEFT:
                    _, _, done = game.step(0)
                elif event.key == pygame.K_RIGHT:
                    _, _, done = game.step(1)
                elif event.key == pygame.K_UP:
                    _, _, done = game.step(2)
                elif event.key == pygame.K_DOWN:
                    _, _, done = game.step(3)

        screen.fill((187, 173, 160))
        draw_board(screen, game.board, tile_size, margin)
        pygame.display.flip()
        clock.tick(60)

    pygame.quit()

if __name__ == "__main__":
    main()

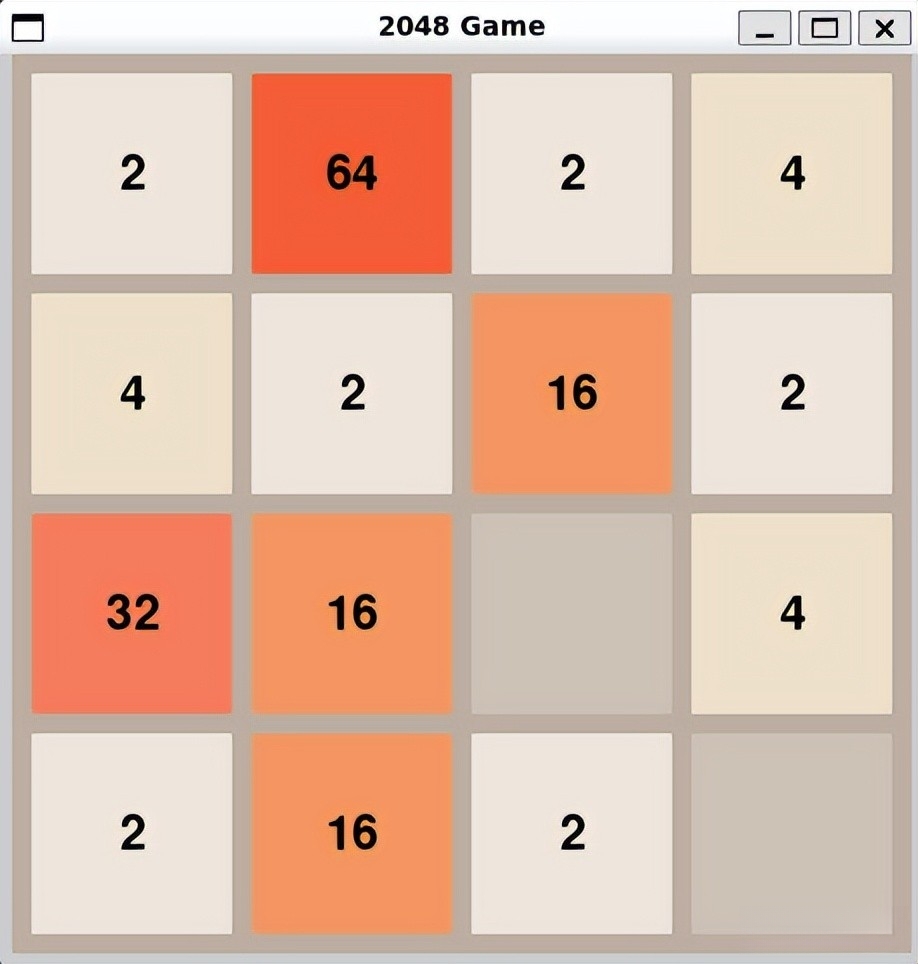

运行后，可以通过上下左右键进行控制

python3 Env2048Gui.py
